Model Item			Unit	PARS-250		PARS-300		PARS-350		PARS-400		PARS-503		PARS-631		PARS-800
Table Diameter			mm	Φ250		Φ300		Φ350		Φ400		Φ500		Φ630		Φ800
Overall Height in Horizontal			mm	533		498		560		560		680		775		1080
Center Height in Vertical			mm	348		348		375		375		430		490		680
Overall Height in Horizontal of Table			mm	348		348		375		375		430		490		680
Overall Length			mm	1353		1357		1341		1517		1736		2127		2340
Spindle Hole Diameter			mm	Φ25H7		Φ25H7		Φ55H7		Φ55H7		Φ55H7		Φ55H7		Φ55H7
Width of T-slot			mm	12H7		12H7		12H7		12H7		14H7		18H7		18H7
Width of Guide Block			mm	18H7		18H7		18H7		18H7		18H7		22H7		22H7
Max. working range			mm	540		540		480		630		600		820		1000
Axis				Rotating	Tilting	Rotating	Tilting	Rotating	Tilting	Rotating	Tilting	Rotating	Tilting	Rotating	Tilting	Rotating	Tilting
Servo motor(Option)		FANUC		αiF8	αiF22	αiF8	αiF22	αiF8	αiF22	αiF8	αiF22	αiF8	αiF30	αiF12	αiF30	αiF22	αiF40
		MELDAS		HF154S	HF354S	HF154S	HF354S	HF154S	HF354S	HF154S	HF354S	HF154S	HF703S	HF204S	HF703S	HF354S	HF703S
		SIEMENS		1FK7063	1FK7083	1FK7063	1FK7083	1FK7063	1FK7083	1FK7063	1FK7083	1FK7063	1FK7101	1FK7083	1FK7105	1FK7083	1FK7105
		HEIDENHAIN		-	-	-	-	QSY116E	QSY155D	QSY116E	QSY155D	QSY116J	QSY190C	QSY155B	QSY190D	QSY155D	QSY190D
Total Reduction Ratio				1：90	1：120	1：90	1：120	1：90	1：90	1：90	1：90	1：180	1：160	1：120	1：240	1：120	1：360
Max. Rotation Speed Motor 2000min-1			r.p.m.	22.2	16.6	22.2	16.6	22.2	22.2	22.2	22.2	11.1	12.5	16.6	8.3	16.6	5.5
Min. increment			deg.	0.001		0.001		0.001		0.001		0.001		0.001		0.001
Tilting Angle Range			deg.	-30~+120		-30~+120		-30~+120		-30~+120		-30~+120		-30~+120		-30~+120
Indexing Accuracy			arc-sec	15	45	15	45	15	45	15	45	15	45	15	45	15	45
Repeatability Accuracy			arc-sec	6	8	6	8	6	8	6	8	6	8	6	8	6	8
Clamping Torque	Hydraulic 35 kg/cm²		kgf-m	90	112	90	112	112	112	112	112	150	200	169	263	230	435
Driving Torque			kgf-m	30		35		80		100		210		300		380
Max. Work Load	Horizontal(0°~45°)		kg	150		150		200		200		350		500		1000
Max. Work Load	Tilting(45°~90°)		kg	85		85		150		150		200		300		500
Allowable Load (Clamped)	F		kgf	1150		1800		2000		2500		2800		2900		3500
	FΧL		kgf-m	90		90		112		112		150		169		230
	FΧL		kgf-m	112		112		112		112		200		263		435
Allowable Work Inertia			kg-m2	1.17		1.69		3.06		4		10.94		24.8		80
N.W.			kg	570		650		720		900		1450		2500		3800

1. Please contact us for more detailed specification.
2. PARKSON owns the rights to modify the drawing and specification.
3. Servo motors, drives, encoders and hydraulic units are excluded.

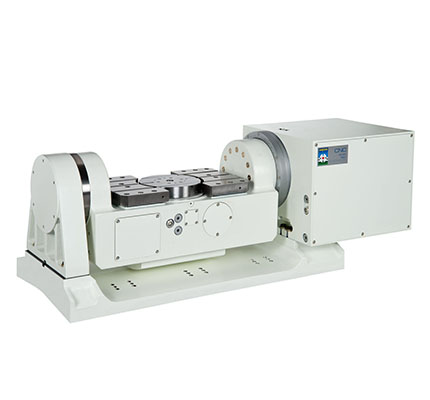

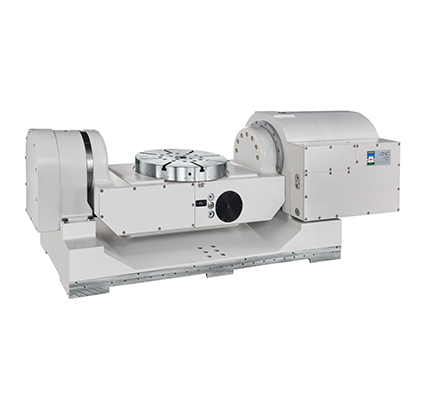

Bàn quay nghiêng CNC loại giá đỡ/ PARS Series
