Model Unit IK-610-RV
SPINDLE
Spindle Drilling Angle NT50
Diameter of Spindle Nose mm Φ128.6
Spindle Motor (2 Options for Selection) hp 10 / 4P 12.5 / 4P
Step of Spindle Speed stage 6
Spindle Speed (50Hz) rpm 102 345
153 469
229 705
Spindle Speed (60Hz) rpm 123 414
184 563
275 846
WORKING RANGE
Max Diameter of Cutter mm 200
Travel mm 398(up 298 /down 100 )
Rapid Travel AC Motor "0.4Kw/0.5Hp AC
3 Phase 4 Poles x 1/40"
Rapid Travel Speed mm/min "177(50Hz)
218(60Hz)"
Reversal Slide "2mm/rev
→||← 0.01mm"
STANDARD ACCESSORIES (● INCLUDE IN PRODUCT)
Spindle Motor 10HP / 4P 12.5HP / 4P
● -
- ●
Rapid Travel AC Motor ●
OPTIONAL ACCESSORIES (○ APOLEGAMY)
"Pneumatic Blade
Locking Device" ○
Bearing Guide Screw ○
IK-A90 Angular Head ○
IK-D90 Deep Head ○
IK-U90 Universal Head ○
IK-U45 Universal Head ○
IK-E93A Extend Head ○
IK-E95A Extend Head ○
Country of Origin Taiwan
Weight (Approximate) kg 508
Warranty 1 year (non artificial mistake)
characteristics:
1. IK milling heads can upgrade or replacement your existing machine body, milling machine or special machine and also it can bring more stable and high-quality machining benefits for work piece cutting.
2. It is used for mold manufacturing or precision processing.
3. The machine processing for travel is 398 mm. We also provide “No slide” format.
4. This product is used in Gantry (Plano) Milling Machine (vertical / horizontal), suitable for heavy metal cutting.
5. Plano milling head series offer accessory head for your optional.
It will apply for multi-angle machining to upgrade efficiency and longer machining range.
6. This product of standard motor is 10HP. We also offer 12.5HP for your optional.
7. Offer pneumatic blade locking device, bearing guide screw for your optional.
8. There are 10 models in IK Plano Milling Machine Head Series.
"

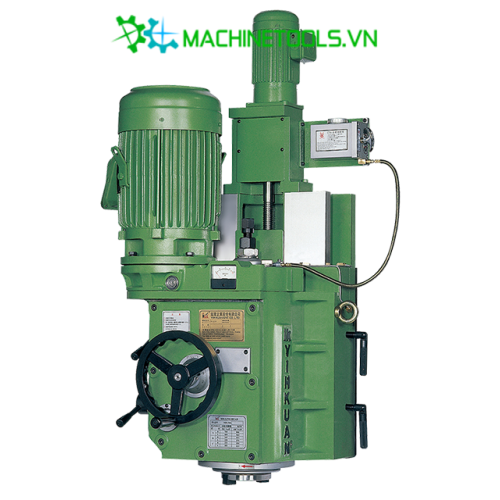

Đầu phay giường IK-610-RV
