| MODEL | Unit | IK-5SA | |
| Spindle | |||
| Spindle Nose Type | NT40 | ||
| Spindle Motor | hp | 5 | |
| Quill Travel | mm | 150(6”) | |
| Spindle Outside Diameter | 105Φ Back Lock | ||
| Spindle Feeds Range | mm | Three Sections | |
| 0.076 | (0.003”) | ||
| 0.038 | (0.0015”) | ||
| 0.203 | (0.008”) | ||
| Step of Spindle Speed | stage | 10 | |
| Spindle Speed | rpm | 75~3500 | |
| STANDARD ACCESSORIES (● INCLUDE IN PRODUCT) | |||
| Spindle Nose Type | NT40 | ||
| Spindle Motor | ● | ||
| Draw Bar | ● | ||
| OPTIONAL ACCESSORIES (○ APOLEGAMY) | |||
| Air Operated Brake | ○ | ||
| Country of Origin | Taiwan | ||
| Weight (Approximate) | kg | 160 | |
| Warranty | 1 year (non artificial mistake) | ||

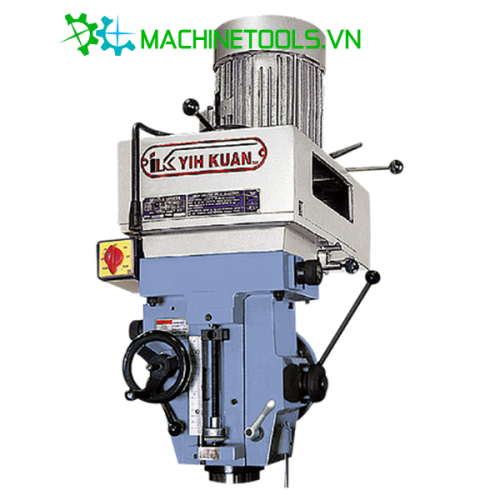

Đầu phay đứng IK-5SA
- Index:
- Availability: In Stock
Tags: Đầu phay đứng IK-5SA
