Bộ gá kẹp kiểu MT collet er

Bộ gá kẹp kiểu MT collet er

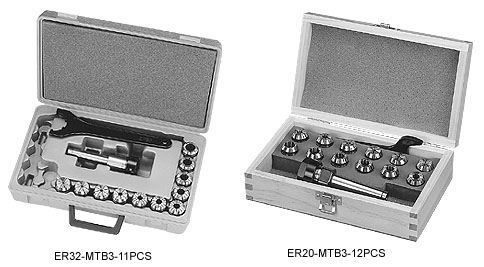

Hộp dụng cụ gá kẹp bao gồm một cờ lê tháo lắp.

Bộ ER16, ER20, ER25 hộp bằng gổ.

Bộ ER32, ER40, ER50 hộp bằng nhựa.

Tiêu chuẩn DIN 228


1.ER16, 20, 25, PACKED IN WOODEN BOX
2.ER32, 40, 50, PACKED IN PLASTIC BOX
3.PACKAGE INCLUDING: CHUCK, COLLET, WRENCH, BOX

TOOL NO. COLLET TYPE MT TAPER SET RANGE COLLET/
SET		 WEIGHT KGS DRAWBAR G
AR021610 ER16 MTB2 1-10 10 1.05

1.M10x1.5P
2.3/8"-16
AR021608 3-10 8 1
AR022012 ER20 MTB2 2-13 12 1.3
AR022010 4-13 10 1.2
AR022515 ER25 MTB2 2-16 15 2.4
AR022507 4-16 7 2
AR031610 ER16 MTB3 1-10 10 1.15

1.M12x1.75P
2.1/2"-12
3. 1/2"-13UNC
4.M10x1.5P
5.3/8"-16
AR031608 3-10 8 1.1
AR032012 ER20 MTB3 2-13 12 1.35
AR032010 4-13 10 1.3
AR032515 ER25 MTB3 2-16 15 2.5
AR032507 4-16 7 2.1
AR033218 ER32 MTB3 3-20 18 4.1
AR033211 4-20 11 3
AR033206 6-20 6 2.7
AR034023 ER40 MTB3 4-26 23 7.2
AR034015 4-26 15 6
AR034007 6-25 7 4.5
AR043218 ER32 MTB4 3-20 18 4.3

1.M16x2.0P
2.5/8"-11
AR043211 4-20 11 3.2
AR043206 6-20 6 2.9
AR044023 ER40 MTB4 4-26 23 7.3
AR044015 4-26 15 6.1
AR044007 6-25 7 4.6
AR054023 ER40 MTB5 4-26 23 8.2

1.M24x3.0P
2.1"x8
AR054015 4-26 15 6.9
AR054007 6-25 7 5.4
AR055012 ER50 MTB5 12-34 12 9.5
