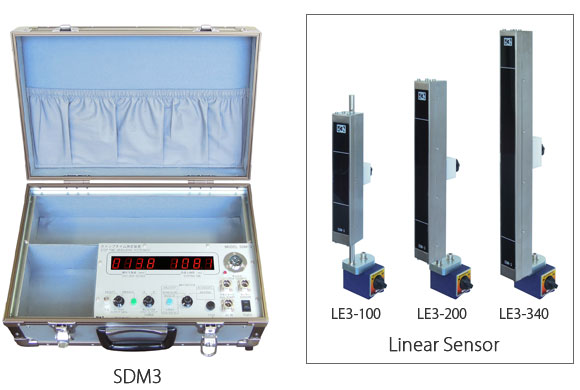

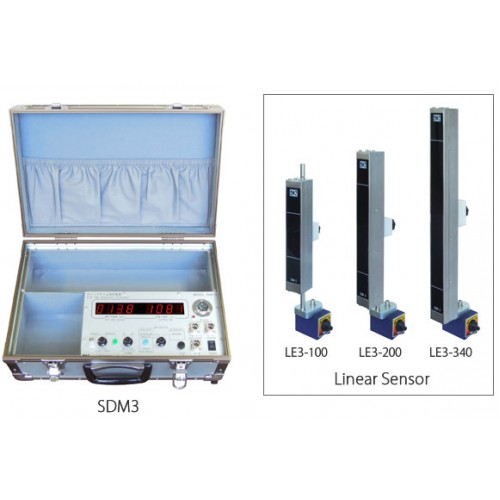

THIẾT BỊ ĐO THỜI GIAN DỪNG SDM3
A requisite measuring system for the performance diagnosing of the press machines.
Non-contact measurement is realized by adopting magnetic sensor.
Features
- The quick stop time, inertial descending value and the speed of the slide movement are measured.
- By adopting non-contact type measurement systems, it can be universally applied for any kinds of the machines. (Turret-punch press is also applicable.)
- Even a machine with small inertial descending value is also measureable.
- The measurement position is recognized automatically. (Stroke length is less than 340mm.)
- Lightweight and compact design. Three models in difference size are provided.
Specifications
| Model | SDM3 |
|---|---|
| Power Supply | AC100±10% |
| Temperature Range | 0 – 60℃ |
| Output Contact | 2A 1B |
| Power Consumption | 20W |
| Measurable Speed(SPM) | 600 spm (Max.) |
| Applicable machines | The slip distance of the slide is less than 300mm.（regardless of the stroke length) |
| Sensor LE3-100 | 90 mm |
| Sensor LE3-200 | 180 mm |
| Sensor LE3-340 | 300 mm |
